Ship Rubber Fender Low Reaction Force Heavy Duty Durable UV Protected
Description

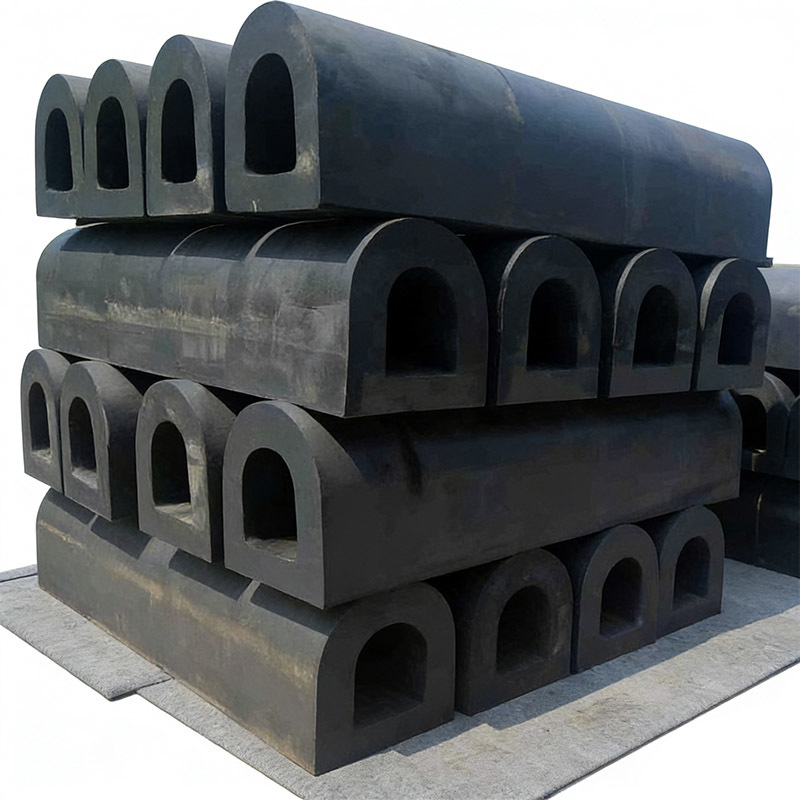

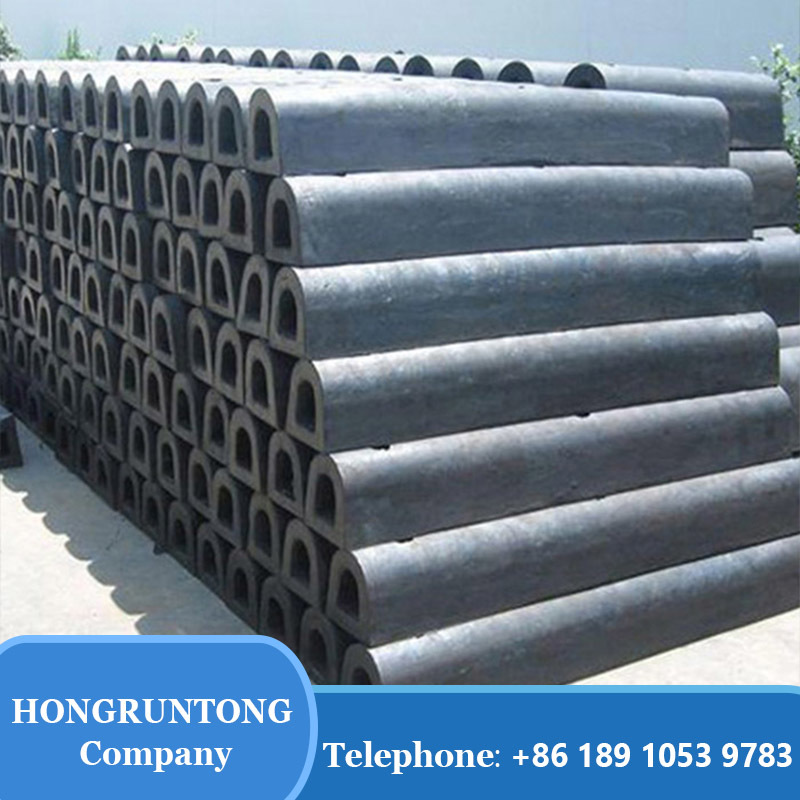

D Type Fenders designed by Hongruntong Marine are optimized for offshore support bases and exposed marine installations where environmental stress and operational unpredictability demand resilient protection systems. The D-profile geometry ensures stable compression even under oblique impact angles and tidal fluctuations.
Constructed from specially formulated EPDM or high-performance natural rubber compounds, these fenders exhibit superior resistance to salt spray, ultraviolet radiation, and temperature extremes. Their structural elasticity provides effective shock absorption during dynamic vessel movements.
This configuration is particularly suitable for offshore supply vessels, crew transfer vessels, and floating platforms requiring continuous hull protection in harsh marine climates.
Case Study – Offshore Supply Base Upgrade
An offshore logistics hub servicing 5,000–10,000 DWT supply vessels faced rapid degradation of conventional rubber strips due to intense UV exposure and constant tidal movement. Hongruntong Marine supplied UV-stabilized EPDM D Type Fenders tailored for floating pontoon structures. Following installation, the facility reported improved structural resilience during high-wave conditions and elimination of surface cracking previously observed within one year of service. After two monsoon seasons, inspection confirmed sustained elasticity and minimal wear, demonstrating reliability in extreme environmental conditions.
Specifications
| Product Name |
D Type Fenders |
| Brand Name |
Hongruntong Marine |
| Material |
High Performance Natural Rubber |
| Color |
Black and Customers' Requirements |
| Type |
Fixed D Rubber Fenders |
| Standard |
HGT2866-2016, PIANC2002 |
| Energy Absorption |
147kN to 920kN |
| Reaction Force |
5.1KN-M to 64KN-M |
| Application |
Port, Dock, Quay, etc |
| A |
B |
C |
D |
E |
F |
H |
K |
| [mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
| 70 |
30 |
15 |
30 |
45 |
80 |
90 - 130 |
200 - 300 |
| 100 |
45 |
15 |
30 |
50 |
100 |
90 - 130 |
200 - 300 |
| 125 |
60 |
20 |
40 |
60 |
125 |
110 - 150 |
250 - 300 |
| 150 |
75 |
20 |
40 |
75 |
150 |
110 - 150 |
250 - 300 |
| 150 |
80 |
25 |
50 |
100 |
200 |
130 - 180 |
300 - 400 |
| 200 |
100 |
25 |
50 |
100 |
200 |
130 - 180 |
300 - 400 |
| 200 |
100 |
30 |
60 |
125 |
250 |
140 - 200 |
350 - 450 |
| 250 |
125 |
30 |
60 |
125 |
250 |
140 - 200 |
350 - 450 |
| 300 |
150 |
30 |
60 |
150 |
300 |
140 - 200 |
350 - 450 |
| 350 |
175 |
35 |
75 |
175 |
350 |
140 - 200 |
350 - 450 |
| 380 |
190 |
35 |
75 |
190 |
380 |
140 - 200 |
350 - 450 |
| 300 |
150 |
35 |
75 |
175 |
400 |
140 - 200 |
350 - 450 |
| 400 |
200 |
35 |
75 |
200 |
400 |
140 - 200 |
350 - 450 |
| 500 |
250 |
45 |
90 |
250 |
500 |
160 - 230 |
400 - 500 |
| *Note: Other sizes can be customized according to the requirements. |
| A |
B |
C |
D |
E |
F |
G |
H |
K |
| [mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
| 100 |
25 |
10 |
30 |
15 |
100 |
50 |
90 - 130 |
200 - 300 |
| 150 |
30 |
12 |
65 |
20 |
150 |
75 |
110 - 150 |
250 - 350 |
| 200 |
45 |
15 |
75 |
25 |
200 |
100 |
130 - 180 |
300 - 400 |
| 250 |
50 |
20 |
100 |
30 |
250 |
125 |
140 - 200 |
350 - 450 |
| 300 |
60 |
25 |
125 |
30 |
300 |
150 |
140 - 200 |
350 - 450 |
| 350 |
70 |
25 |
150 |
35 |
350 |
175 |
140 - 200 |
350 - 450 |
| 400 |
80 |
30 |
175 |
35 |
400 |
200 |
140 - 200 |
350 - 450 |
| 400 |
80 |
30 |
200 |
35 |
400 |
200 |
140 - 200 |
350 - 450 |
| 500 |
100 |
30 |
250 |
35 |
500 |
250 |
140 - 200 |
350 - 450 |
Features
Superior UV and Ozone Resistance
The EPDM compound is engineered to withstand prolonged sunlight exposure without surface hardening or cracking. Anti-ozone additives prevent micro-fractures that typically develop in exposed coastal installations, significantly extending service life.
Stable Performance in Temperature Extremes
The rubber formulation retains elasticity across wide temperature ranges, ensuring reliable compression behavior in both cold offshore mornings and high-temperature afternoon conditions.
Oblique Impact Stability
The D-profile provides broad surface contact, maintaining alignment even during angled vessel approaches caused by wind or current forces. This reduces localized pressure concentration and protects structural edges.
Low Water Absorption and Chemical Resistance
The dense rubber structure resists seawater absorption and exposure to fuel residues or minor oil contamination common in offshore environments.
Applications
Offshore Supply Bases
Protects docking platforms and floating pontoons from repeated vessel contact.
Floating Terminals
Suitable for modular floating structures exposed to continuous tidal motion.
Remote Coastal Installations
Ensures reliable performance where maintenance access may be limited.
Why Choose Hongruntong Marine
Expertise in Harsh Marine Environments
We understand the mechanical and environmental challenges of offshore facilities and design products specifically to withstand them.
Advanced Material Innovation
Continuous research into UV-resistant and high-durability rubber compounds ensures long-term stability in exposed environments.
Project-Specific Engineering Support
We provide consultation based on tidal data, vessel movement characteristics, and installation conditions to optimize performance.
Reliable Global Supply Network
Efficient export logistics and responsive technical support enable smooth delivery to remote offshore locations.
FAQ
1. Is EPDM better for offshore use?
Yes, EPDM offers superior UV and ozone resistance compared to standard natural rubber.
2. Can D Type Fenders be installed on floating pontoons?
Yes, they are commonly used for floating and modular marine structures.
3. Are they resistant to fuel exposure?
They provide moderate resistance to incidental fuel and oil contact.
4. What is the recommended inspection interval?
Annual visual inspection is typically sufficient.

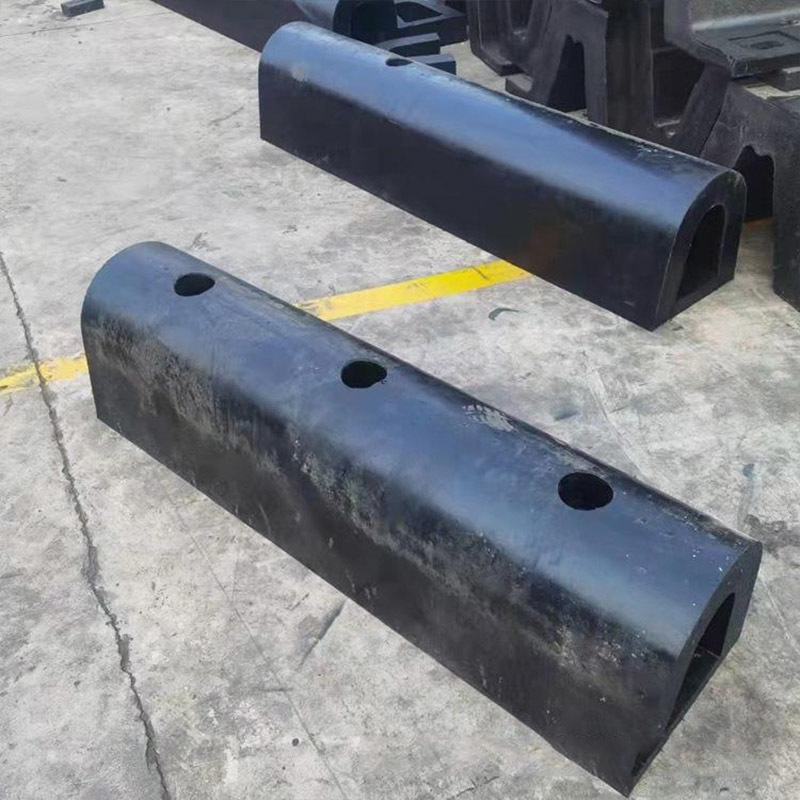

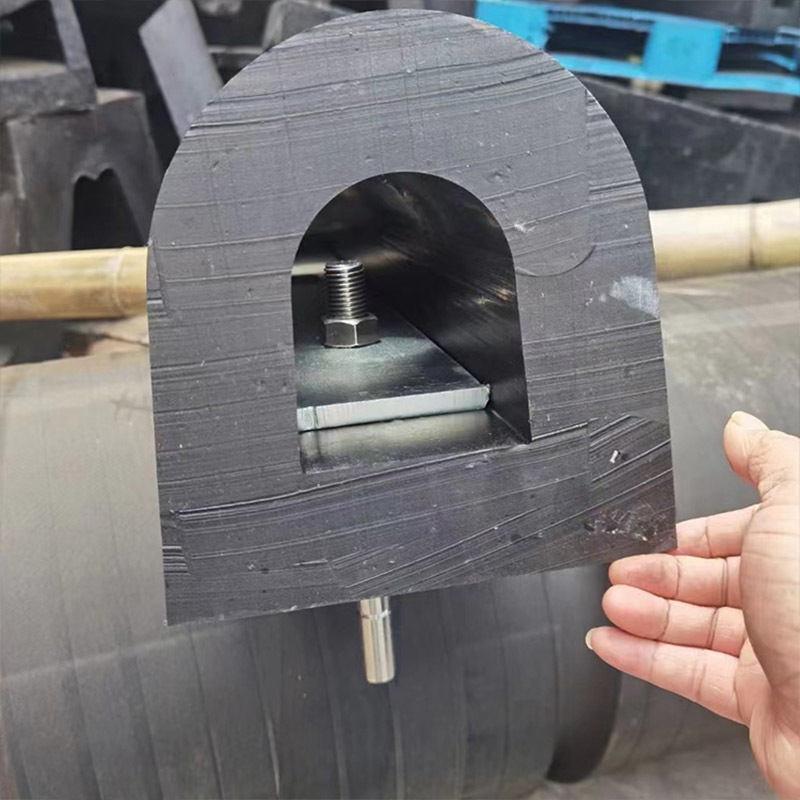

5. Can custom mounting holes be pre-drilled?
Yes, customized drilling configurations are available.
